Tube Machines

Industrial Tool & Die builds tube machines to perform a variety of functions including tube forming, swedging, broaching,  and end forming  The below pictures are machines that we have built.  Please contact us for more information regarding our tube machinery.

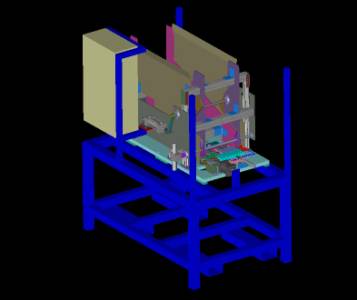

CAD-generated model of a typical tube machine.  This machine is servo-controlled to allow quick adjustments to the bend tooling.

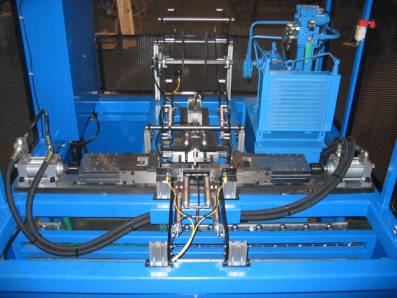

Tube end forming machine.  This machine dispenses cut-to-length tubes through a hopper and places two tubes into the forming area.  The tooling clamps the tubes while two side-mounted slides expand and form a D-shape in the ends of the tube.
